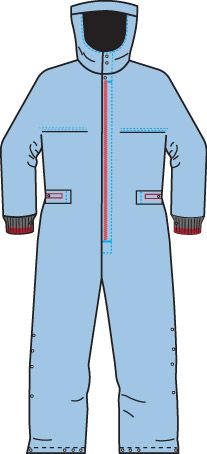

ESD Cleanroom Coverall with Integral Hood
Product Code | VE3
Features
- Elasticated cuff carries a grounding stud.
- Hood, Cuff, Body and Sleeves constructed with integrated conductive tape that runs from the grounding stud at the cuff, along underarms and down to knee on both legs.
- Knee stud allows for grounded connection of ESD Cleanroom Boots.
- Front and back yoke seams constructed with integrated conductive tape which connects with the conductive tape at the sides.
- No pockets.
- Stainless Steel Stud adjustments at waist and knee.
- Stainless Steel Stud adjustment fittings at neck and ankle.
- All panel edges are heat-sealed.
Usage
- ISO 14644-1:2015 Cleanrooms Class 6 and above
- GMP Grade A - D Environments
- Anti-static controlled environment
Fabric and Weight
- Main - 98% polyester filament yarn / 2% anti-static grid
- ESD Tape - 70% polyester / 30% carbon-nylon
- 105gsm
Sizes
Standard Size Range
- XSM to XXL
Notes
All ESD Garments are made to order
Std Colour | Protrack Code
- This colour code is #9DD4E7 Light Blue | VE3
Non Std Colour
- This colours code is #4E89AE Navy
- This colours code is #1A5924 Green
- This colours code is #FFFFFF White
Standards
-
Electrostatic Properties
